SunSun XBL-600

SunSun XBL-600 External Wall-Mounted Filter

Powerful Filtration with a Space-Saving Design

The SunSun XBL-600 is a compact wall-mounted external/Hang-On-Back filter designed for planted aquariums, aquascapes and freshwater tanks. Its larger filter body provides more room for filtration media while keeping the main filtration unit outside the aquarium.

The XBL-600 is rated at 500 L/H with 7W power consumption according to SunSun's official XBL-series specifications. It also features surface-film removal, biochemical filtration and anti-dry protection, making it a versatile filtration option for aquascapers.

Key Features

💧 500 L/H Water Flow
Provides continuous water circulation and filtration, helping transport suspended particles and waste toward the filter.

⚡ Efficient 7W Power Consumption
The 7W motor delivers a strong flow rate while keeping power consumption relatively low for continuous operation.

🧽 Large Filtration Capacity
The XBL-600 has a larger body than the XBL-500, providing additional room for filter media. This allows you to build a filtration setup around the specific needs of your aquarium.

You can combine mechanical and biological media such as filter sponge, ceramic rings, Bio-Rio or other suitable porous media.

🧫 Biological Filtration
The filter provides space for beneficial nitrifying bacteria to colonize. A healthy biological filtration system helps process toxic nitrogenous waste and maintain a more stable aquarium environment.

🌊 Built-In Surface Skimmer
The XBL-600 incorporates a surface-skimming function to help remove unwanted surface film and floating impurities. This can help maintain a cleaner-looking water surface and improve gas exchange.

🤫 Quiet Operation
SunSun's XBL series is designed with noise reduction in mind, making it suitable for home aquariums and display aquascapes where quiet operation is desirable.

🛡️ Anti-Dry Protection
The XBL series incorporates a waterless/anti-dry design intended to protect the unit if insufficient water is detected. The filter should still always be properly primed before operation.

✨ Space-Saving External Design
The XBL-600 hangs externally on the aquarium, keeping bulky filtration equipment outside the display area. This is especially useful for aquascapes where maintaining a clean and unobstructed interior is important.

Ideal For

• 🌿 Planted Aquariums

• 🌱 Nature Aquascapes

• 🐠 Freshwater Community Tanks

• 🦐 Shrimp & Invertebrate Tanks

• 🐌 Snail Tanks

• 💧 Small to Medium Aquariums

• 🏠 Display Aquariums

SunSun's official specification lists the XBL-600 for aquariums around 60 cm in length. Actual suitability will depend on aquarium volume, livestock load, aquascape layout and the amount of filter media being used.

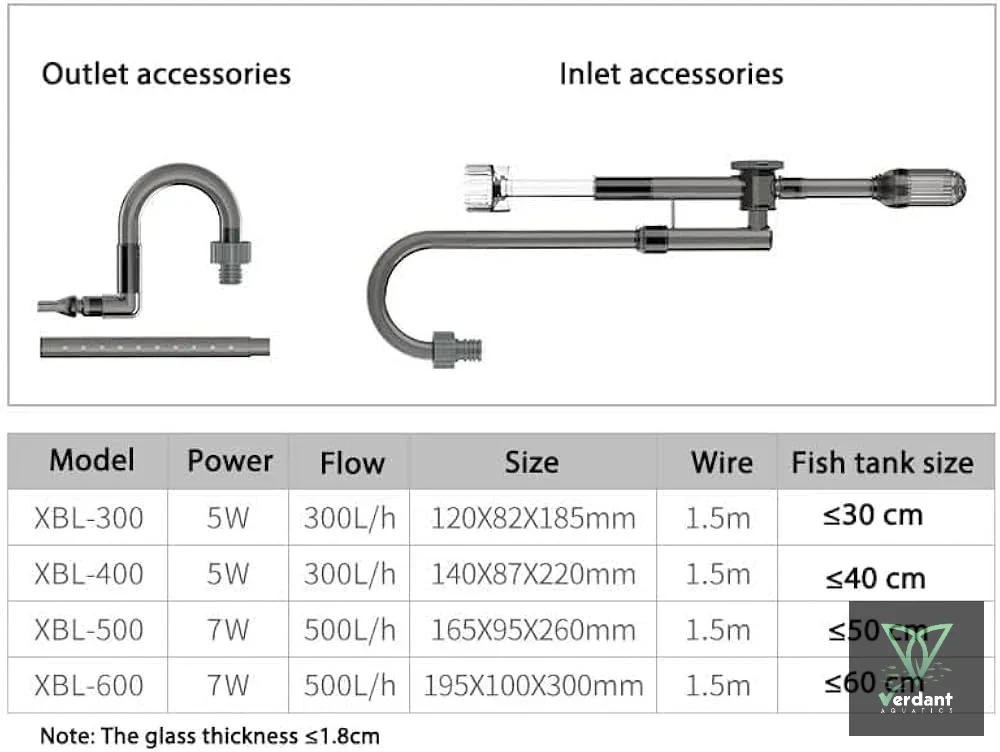

Technical Specifications

• Brand: SUNSUN

• Model: XBL-600

• Filter Type: External Wall-Mounted / HOB Filter

• Maximum Flow Rate: 500 L/H

• Power Consumption: 7W

• Voltage: 200–240V

• Frequency: 50Hz

• Dimensions: 195 × 100 × 300 mm

• Power Cable Length: 1.5 m

• Recommended Tank Length: Up to approximately 60 cm

• Surface Skimming: Yes

• Anti-Dry Protection: Yes

• Biological Filtration: Yes

• Maximum Glass Thickness: Approximately 18 mm

These specifications follow SunSun's official XBL-series listing.

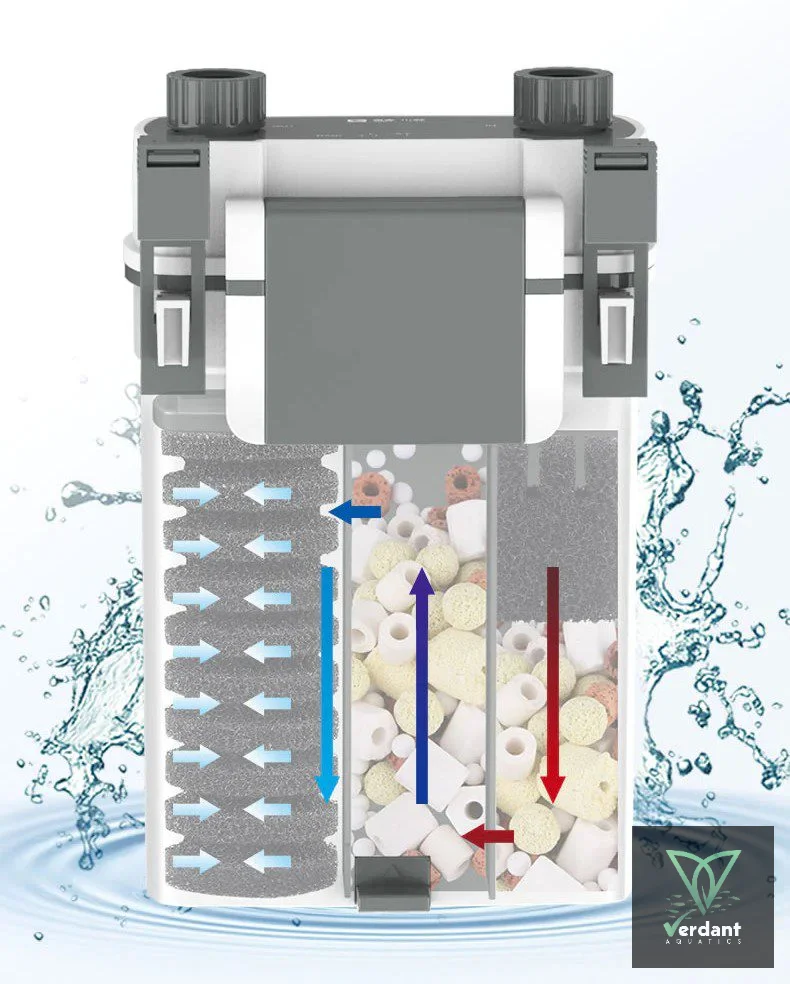

Customizable Filter Media

One of the biggest advantages of the XBL-600 is its relatively generous media space.

You can customize the filtration according to your aquarium:

• Mechanical filtration: Filter sponge/foam to trap debris and suspended particles.

• Biological filtration: Ceramic rings, Bio-Rio, bio balls or other porous media for beneficial bacteria.

• Chemical filtration: Activated carbon or other chemical media when specifically required.

For a planted aquarium, prioritizing good mechanical filtration followed by high-quality biological media is generally a practical approach.

Surface Skimming

Surface film can develop from organic compounds, oils and other substances accumulating at the water surface. The XBL-600's surface-skimming function helps remove this film as part of the filtration process.

A cleaner surface can also improve the interaction between the aquarium water and atmosphere, which is particularly useful in planted aquariums.

Installation

1. Securely mount the XBL-600 on the back of the aquarium.

2. Connect the inlet and outlet components correctly.

3. Install your preferred filter media.

4. Fill/prime the filter according to the manufacturer's instructions.

5. Make sure the filter has adequate water before starting.

6. Connect the power and allow the filter to begin circulating water.

7. Position the surface skimmer according to your aquarium's water level.

Always check all connections before operation and ensure the filter is securely mounted.

Maintenance

Regular maintenance is important to maintain good flow and filtration efficiency.

• Clean mechanical sponge/media when it becomes clogged.

• Inspect the intake for debris and plant matter.

• Clean the impeller periodically.

• Remove accumulated waste from the filter chamber.

• Rinse biological media gently using removed aquarium water.

• Check tubing, connections and seals during maintenance.

• Never allow the filter to operate without adequate water.

As mechanical media becomes increasingly clogged, water flow can decrease significantly. Regular cleaning helps the filter maintain consistent circulation.

Why Choose the SunSun XBL-600?

The SunSun XBL-600 offers a combination of strong filtration, generous media capacity, surface skimming and a compact external design.

With 500 L/H flow and only 7W power consumption, it is a practical choice for aquarists who want more filtration capacity without placing a large internal filter inside the aquarium.

The larger XBL-600 body compared with smaller XBL models also gives aquascapers more flexibility when building a customized mechanical and biological filtration setup.

SunSun XBL-600 — High-capacity external filtration with surface skimming in a clean, space-saving design.
