SunSun YBF-600

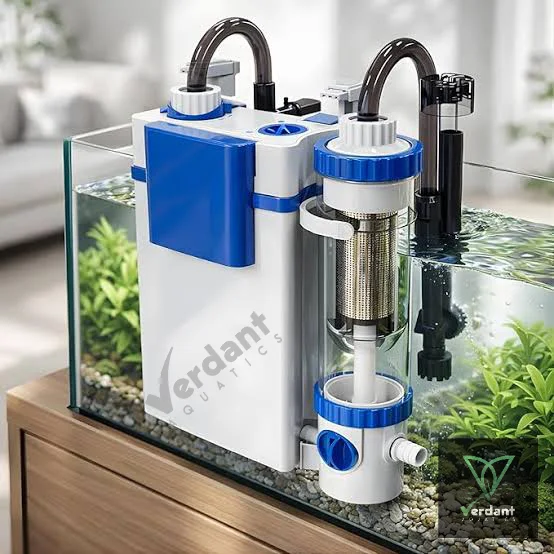

SunSun YBF-600 Hang-On Canister Filter

The SunSun YBF-600 is a high-capacity Hang-On Canister Filter designed for aquarists who want more filtration space than a conventional HOB filter without installing a full-size cabinet canister.

With a 600 L/H maximum flow rate, 8W power consumption and a three-stage filter chamber, the YBF-600 provides efficient mechanical filtration while giving you room to customize the filtration media according to your aquarium's requirements.

Its integrated surface skimmer, adjustable flow control and waste-separation system make it particularly practical for planted and freshwater aquariums where maintaining clear water and a clean surface is important.

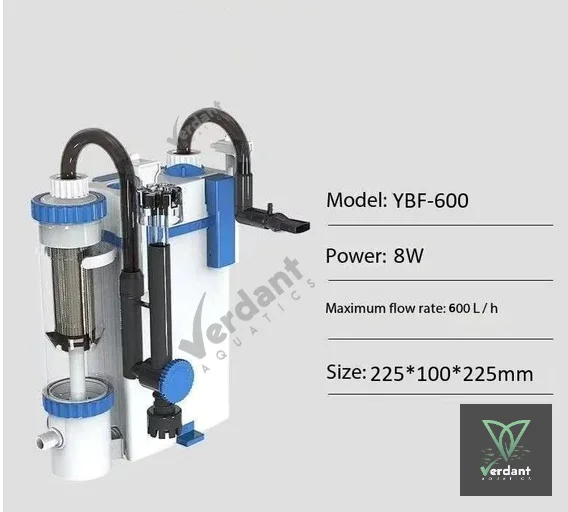

Technical Specifications

• Model: SunSun YBF-600
• Filter Type: Hang-On Canister / HOB
• Maximum Flow Rate: 600 L/H
• Power Consumption: 8W
• Voltage: 220–240V AC
• Frequency: 50Hz
• Dimensions: 225 × 100 × 255 mm
• Recommended Aquarium Size: Up to approximately 130L
• Recommended Tank Length: Approximately 60–80 cm
• Maximum Compatible Glass Thickness: Up to 12 mm
• Power Cord Length: Approximately 1.3 m
• Filter Chambers: 3-stage
• Flow Control: Adjustable
• Surface Skimmer: Integrated
• Filtration: Mechanical + Biological + Chemical filtration capable

Specifications are based on currently available product documentation and retailer listings.

Multi-Stage Filtration

The YBF-600 features three filter chambers, allowing you to arrange filtration media according to your setup.

Mechanical Filtration

The included filter media helps trap suspended particles, debris and other visible impurities before they remain in circulation.

Biological Filtration

The available filter space can be customized with suitable biological media to provide additional surface area for beneficial bacteria.

Chemical Filtration

The media chambers can also be used with suitable chemical media when required, giving you flexibility for specialized filtration needs.

The three-stage layout provides considerably more room for media customization than many compact traditional HOB filters.

Built-In Surface Skimmer

The integrated surface skimmer helps collect floating surface debris and oily film from the aquarium surface.

This can help maintain a cleaner-looking water surface and improve gas exchange between the aquarium water and atmosphere.

Adjustable Water Flow

The YBF-600 includes flow control, allowing you to adjust circulation according to the aquarium.

This is useful for planted tanks, shrimp setups and community aquariums where excessive flow may disturb plants or livestock.

Waste Separation System

One of the practical features of the YBF-600 is its fish-waste / organic-waste separation system.

The design helps collect larger waste particles separately, making routine maintenance easier and helping prevent accumulated debris from unnecessarily loading the main filtration media.

Convenient Water Filling

The filter incorporates a dedicated water-filling/priming opening, allowing water to be added to the filter during setup without needing to disconnect the main inlet and outlet connections.

Suitable For

The YBF-600 is a practical choice for:

• Planted aquariums
• Community freshwater aquariums
• Shrimp aquariums
• Aquascaping setups
• Medium-sized freshwater tanks
• Aquariums where additional filter-media capacity is preferred

For tanks around the upper end of its recommended capacity, actual suitability will depend on livestock load, aquascape density, filter-media configuration and the required turnover rate.

Installation & Maintenance

Mount the filter securely on the rear rim of the aquarium and make sure the glass thickness is compatible with the filter.

Before switching the filter on, ensure the filter body and pump are properly filled/primed with water. Do not run the pump dry.

For routine maintenance, clean mechanical filter media when flow begins to decrease. Biological media should generally be rinsed gently using removed aquarium water rather than chlorinated tap water.

Why Choose the YBF-600?

The YBF-600 sits between a conventional HOB filter and a traditional external canister filter. Its 600 L/H flow, 8W power consumption, three-stage media chamber, adjustable flow and integrated surface skimmer provide a combination of filtration capacity and convenience without requiring a large canister filter underneath the aquarium.
